A4 (B7) Competition Series Front Mount Intercooler (FMIC) Kit

*

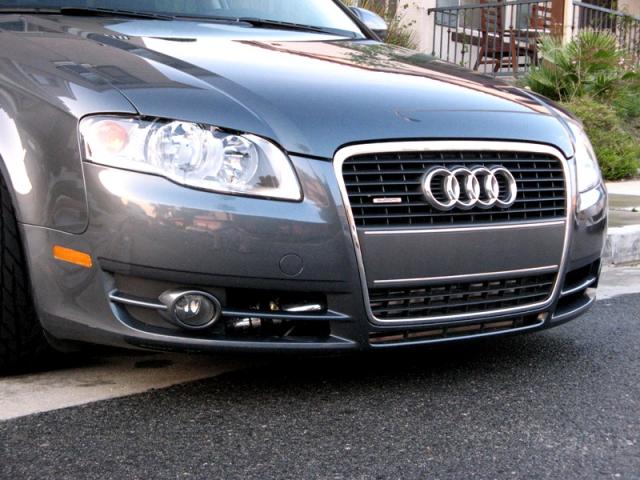

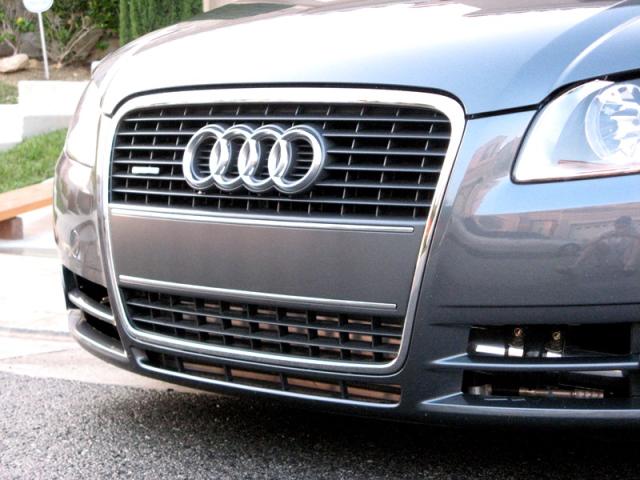

Customer's A4 with Competition FMIC

The long awaited B7 intercooler applications are here!  We introduce our new 2006+ Audi A4 (B7) Competition FMIC!  With every single intercooler application we have introduced, every single one has been hailed as the undisputed best intercooler available.  From our Competition Series FMIC for the B5 and B6 A4's, to our Dual SMIC Upgrades for the B5 S4, this application will be no different.  This same proven formula is now being brought to your 2006+ Audi A4.

1. Large 20"x11"x3" (24"x11"x3" with end tanks) High Density Bar & Plate Construction Intercooler Core.
2. Rolled intercooler end tank design (welded and port & polished interior for improved flow).
3. Mirror polished or Type III Hard Black Anodizing (for stealth) finish on intercooler, end tanks and all piping.
4. Complete all aluminum intercooler piping, replaces every single OEM piece with hard piping for improved throttle response.
5. Larger sized intercooler piping than OEM, optimized for "Big Turbo" high horsepower applications.
6. Intercooer piping features beaded ends, silicone "hump" hoses and T-bolt clamps to prevent intercooler piping from coming off from boost.
7. Maintains ALL factory components, i.e. fog lights, horn, water squirters etc...
8. Retains the OEM side fog light covers and lower center grill for the OEM look.
9. Includes replacement External Power Steering Cooler kit with all hardware to mount and install that replaces OEM power steering line with more efficient unit. No need to tweak or "rig" the OEM piece.
10. Includes all hardware needed to install.
11. Limited Lifetime Warranty.

Competition FMIC installed	Competition FMIC assembly (polished version)
Comp FMIC in stealthy type III hard anodized black version	Competition FMIC assembly (type III hard anodized black version)

The heart of the ER Competition FMIC is the massive 20x11x3(24x11x3 with end tanks) high density bar and plate intercooler core. It features 660 cubic inches intercooler core.  Through extensive testing of different types of intercooler cores (tube & fin, bar & plate) we found that the high density bar and plate core to be the most efficient. Independent testing has shown that our FMIC is so efficient in cooling that it has cooled intake air temperatures (IAT) to almost ambient (outside) temperatures. We also did extensive testing on the proper size to use to effectively cool the hot charged air from these big turbo upgrades as well as fight off heatsoaking (when the intercooler cannot transfer heat away faster than the heat building up from the hot intake air). heatsoaking is not an issue at all as shown by consistency of the IAT staying in the same temperature range throughout the WHOLE RPM powerband. Also our FMIC recovers so fast after a full throttle pull that once you shift, it recovers completely. This is why pull after pull, our FMIC does not heatsoaking. Beat on it all day long and the IAT will consistently be near ambient temperatures. Our Competition FMIC is just what it is, designed for competition. The other intercoolers may be adequate if you lived your life a ¼ mile at a time (with hours between runs to cool down), they will definitely heatsoaking under harsher conditions like road racing where you/re at full throttle for at least 20 minutes. Imagine you pegged behind the rear bumper of the car in front of you. With no cool airflow flowing through your intercooler, it will heatsoaking very fast, loosing you that very precious power you need to pass the car ahead of you. The FMIC then becomes a heatsink. Since our FMICs are quite large, it can hold more heat longer before it heatsoaks, giving you extra valuable time with all the power you need to make the pass.

The Competition Series Core features a thick 3" core.  This has many advantages over a thin core that many of our competitors use.  With a thicker core, we do not need to go tall to get the same intercooler size.  This allows better internal flow characteristics as the airflow does not need to travel upwards to the top of the core.  Also, intake airflow wants to travel through the core on the path of least resistance.  Because of this, intake airflow will want to travel towards the bottom of the core straight to the outlet.  This makes the top of the core less efficient as airflow will not want to travel through that section.  At the same time, our FMIC does not block the entire face of the radiator.  This allows direct airflow for the radiator over the top of the intercooler ensuring a proper cooling system.  Everything needs to work correctly on the car.  Without having good airflow to the radiator, the car will overheat.  With it's size and ability to support over 600hp, it is the "last intercooler you will ever buy", no matter what size turbo you decide to run in the future.

Turbo to Intercooler "Hot" Pipe (polished version)	Lower Intercooler & Throttle Body Pipe (polished version)

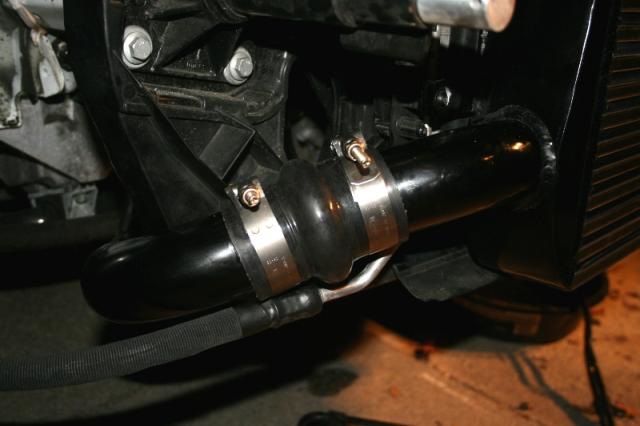

Turbo to Intercooler "Hot Pipe (type III hard anodized version)	Lower Intercooler Pipe (type III hard anodized version)

Passenger side fog light cover	Driver side fog light cover

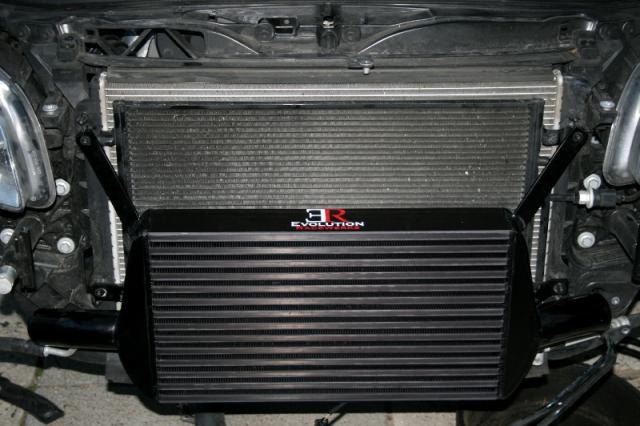

Stealthy Type III Hard Anodize Black Version	Customer Installed Comp FMIC
Comp FMIC with bumper reinforcement bar installed	Customer Installed Comp Black FMIC

All our intercooler applications come standard with a mirror polish intercooler and piping. We also offer and stock our intercooler applications with Type III Hard Black Anodizing for the guys that want the stealthy look. With the Type III Hard Anodized FMIC, it is very hard to tell there is a FMIC on the car. Most of our customers with the Type III Hard Anodized FMIC comment that unless you know there is a FMIC on the car, nobody notices it. Another added benefit of the Type III Hard Anodizing is that it makes the intercooler fins harder and stronger, which makes it less prone to getting bent/damaged from road debris like rocks etc... We opted for the Type III Hard Anodizing over the Type II color anodizing which is only asthetics for this purpose only (even though it cost us considerably more to anodize Type III than Type II). We have been using Type III Hard Anodizing on FMIC we put on our rally car customers for years which go through tremendous amounts of abuse. Testing has shown no noticeable ill-effect from the Type III Hard Anodizing on performance (regular spray paint etc... has shown ill-effects on performance).

We also offer our intercoolers in any color of the rainbow you want (special order) and is available in only Type II Anodizing (asthetics).

Quality is very important to us. We do extensive R&D as well as beta testing to ensure this (as some of you may already know, waiting for us to release the production units). We only release our products once we feel we have reached perfection. We do not rush to get our products out even if there is alot of potential customers. Also, we do quality checks before the intercoolers are packaged. EVERY FMIC is pressure tested to 50 PSI of pressure before they are shipped to ensure no leakage. EVERY FMIC is test fitted on the original component on the car (OEM radiator) to ensure perfect fitment. We include only high quality parts and accessories in our FMIC kit. We include detail instructions and ALL parts needed for installation. All our FMICs are backed with our Limited Lifetime Warranty.

Competition FMICs being pressure tested

Competition FMICs being test fitted on factory radiator

CAUTION: This product is intended for OFF ROAD USE ONLY. Not legal for use on pollution controlled vechiles upon public road/highways.   THIS PRODUCT IS FOR SALE FOR ALL 49 STATES EXCLUDING CALIFORNIA.

THIS ITEM IS NOT FOR SALE, INSTALLATION, OR USE ON LICENSED VEHILES IN THE STATE OF CALIFORNIA.

 The item is for sale for international customers without restriction.
